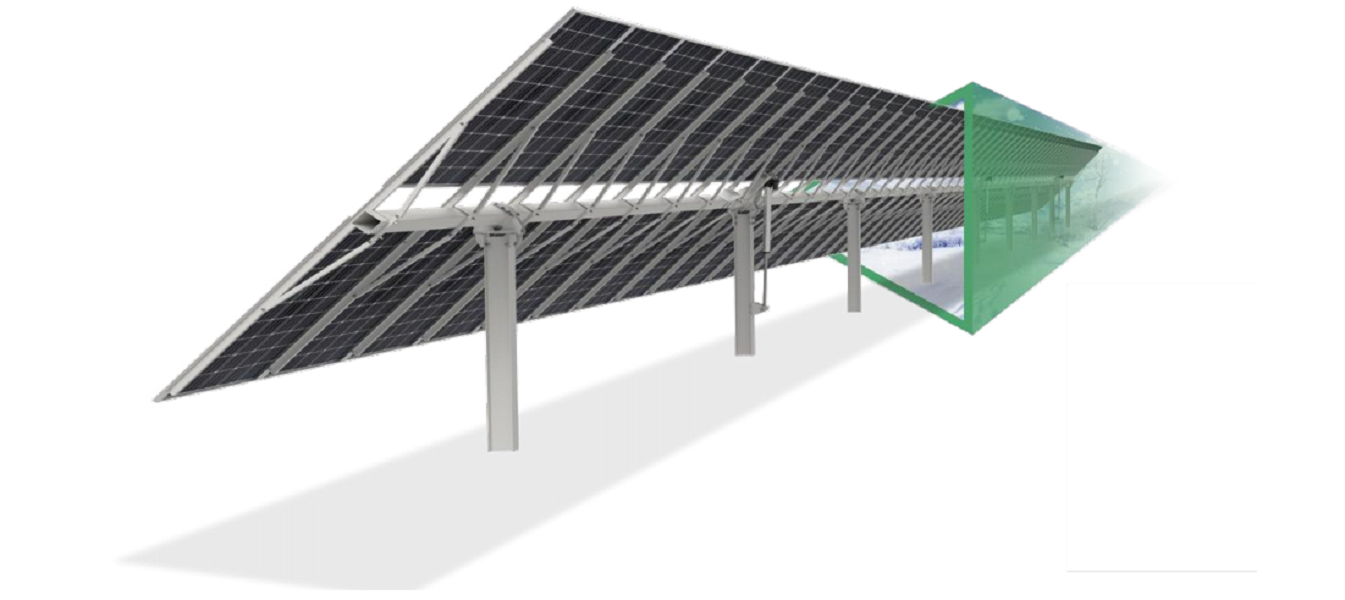

Multi-Drive - Double Portrait Horizontal Single -Axis Mounting Tracker

System key features:
1.Suitable for the mid-low wind load areas
2.Fully fit for 210 module
3.AI algorithm to maximize power generation
4. Adapt to various terrains allowing a north-south
slope up to 20%
5.Easy installation & maintenance
  • SAM-002
  • GB Solar
System typeMulti-drive - Double Portrait Horizontal Single-axis Tracker
Maximum capacity per row72KWp (Estimated with 600W PV-Modules)
PV-Module quantity per row2Px60、2Px45
Tracking range±60° (Customized according to project)
Tracking accuracy±1°
Motor quantity2-4 unit
Structural materialsHDG Steel, Al-Mg-Zn Coating Steel
FoundationConcrete foundation,Steel pile, PHC pile
Quantity of foundation/MW125PCS/MW (Estimated with 600W PV-Modules)
String designAdapt to various strings requirements
Tracking methodAstronomical algorithm+closed-loop control (AI)
Control systemMCU
Signal transmissionWire (RS485) or wireless (Zig bee)
Drive methodLinear-actuator
Motor type24V DC Motor
Power supplyAC-powered or self-powered
Manual operationYes
Wind loadCustomized
Operating temperature-30°c to +60°c
Pollution levelC5
Slope toleranceNorth-south 10%~20%, East-west no limits
Special toolsNot required
Load design standardGB,ASCE,BS EN,AS ect
Warranty5-year for drive&controller, 10-year for structure
Wind protection≥18m/s
Night stow modeYes
Overheat preventionYes
Overload preventionYes
Fault self-diagnosisYes
Rotate to horizontal time6-7 mins
